EMC Test Systems
Flexibel - Multifunctional - Expandable
The heart of every EMC test system
EMC test systems
EMC test systems can vary from simple EMC test systems with one or two instruments, to complex installations with many EMC measurement instruments connected, while in many cases even a turntable and an antenna mast should be controlled. In order to enable full automated EMC testing, these devices and measuring instruments, should be controlled in an automated manner. Where the EMC test software RadiMation® acts as the software centre of the system; EMC test system RadiCentre® is the core of the hardware. With the introduction of the RadiCentre® by DARE!! Instruments, cost effective, full automated testing finally becomes reality!
|
|
|
|
|
RadiCentre-one |

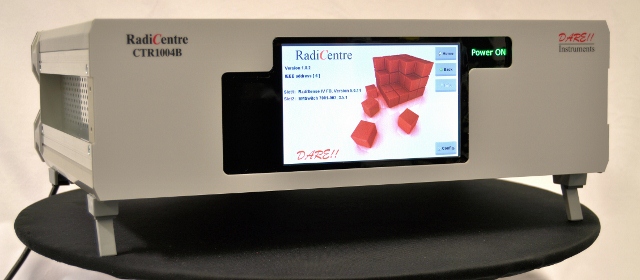

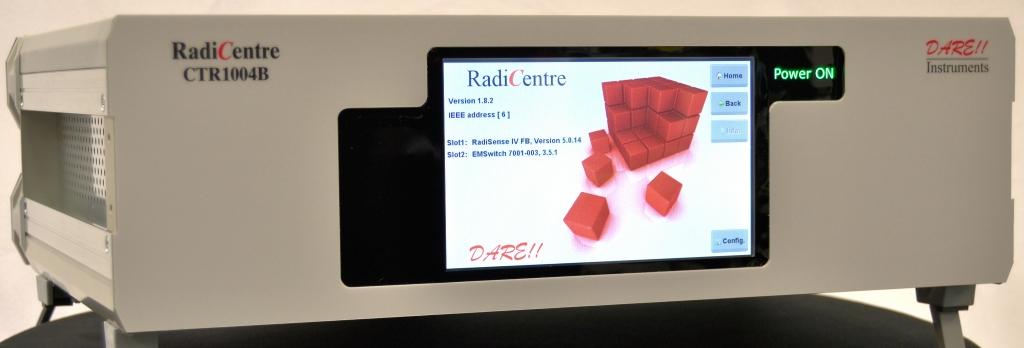

RadiCentre 2-slot |

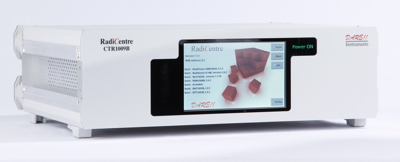

RadiCentre 7-slot |
Flexible
To enable full automated EMC testing for small and large measuring systems the RadiCentre® EMC test system provides either one, two or seven versatile slots. Each slot can be individually configured at the user’s choice. The different available plug-in cards can be combined as desired, allowing any combination of functionality.
Expandable
The RadiCentre® EMC test system is expandable with a number of different cards. The following cards are now available:
|
RadiSense® |
LASER-powered EM field sensors from 10 kHz to 18 GHz |
|
RadiLink® |
RF analog fiber optic link up to 3 GHz |
|
RadiMate® |
four channel A / D and D / A for EUT monitoring |
|
RadiPower® |
RF (CW/Burst) power meter for EMC applications |
|
RadiGen® |
EMC RF signal generators from 9 kHz to 6 GHz |
|
RadiSwitch® |
two to four channels to switch to 40 GHz/ 700W |
|
RadiControl® |
controller for turntable and/or atenna tower |
Easy to use
The EMC test system is “Plug and Play” which means that every board is automatically recognized and initialized and ready for use. The user can configure and control the system by means of a clear and easy to use color TFT touch screen (2 channel and 7-channel system only).
Space effective
Where normally controllers, EMC probes, switches and other equipment take one or more units in a 19-inch cabinet, the RadiCentre® EMC test system allows for combining one to seven devices in just three units height. RadiCentre® is available in both a desktop and 19-inch rack mountable version. All plug-in cards are powered by the RadiCentre® EMC system, in contrary to separate rack equipment that all will have their own power supply.
Software support
The RadiCentre® EMC test system is software controllable with RS-232, USB, LAN and IEEE-488 (Optional for the 9-slot system). Besides the RadiMation® integral EMC measurement software, the system can be controlled by all EMC measurement packages, as all software codes to control the unit are available.
Linux Based & Software upgrades
The EMC system is Linux based thus offering great stability and fast start-up times. As all embedded software is stored in flash, it is very easy to upgrade the system with new versions, thus protecting the initial investment.
Specifications
|
RadiCentre® Modular EMC Test System |
|
Performance |
CTR1001S |
CTR1004B |
CTR1009B |
|
Slots for Plug-in Cards |
One available configurable slot |
Two available configurable slots |
Seven available configurable slots |
|
Display (TFT touch screen) |
none |
7'' WVGA (800x480) |
7" WVGA (800x480) |
|
Backplane |
Simple backplane |
Intelligent versatile backplane | |
|
Processor |
none |
800 MHz Vortex 86DX processor | |
|
Memory |
none |
256 MB DDR2 RAM, 256 MB Flash | |
|
Operational System |
none |
Linux | |
|
Model |
desktop / table top |
Desktop or 19” rack mountable | |
|
Dimensions | |||
|
Height |
196 mm |
3U |
3U |
|
Depth |
276 mm |
312 mm | |
|
Width |
70 mm |
19 inch (rack mountable) | |
|
Weight (empty) |
Approx. 1.5 kg |
Approx. 6 kg |
Approx. 7 kg |
|
Environmental conditions | |||
|
Temperature reach |
0 degrees C to |
0 degrees C to | |
|
Relative moisture |
10 – 90% |
10 – 90% | |
|
Power | |||
|
Supply voltage |
AC/DC Adaptor |
230 VAC | |
|
Power consumption (empty) |
Not applicable |
33 W |
33 W |
|
Power consumption(max) |
2 Amp max. |
180 W |
180 W |
|
Interfaces & cables | |||
|
Interface |
RS232 and USB 1.1 |
RS232, USB 1.1 (device), USB 2.0 (host), Ethernet and IEEE-488 (optional) |
RS232, USB 1.1 (device), USB 2.0 (host), Ethernet and IEEE-488 (optional) |
|
Connectors |
DC-power input, sub-D9, USB-B, Interlock |
IEC Inlet, Sub D-9, USB-A (2x), USB-B, IEEE-488, Ethernet, Interlock |
IEC Inlet, Sub D-9, USB-A (2x), USB-B, IEEE-488, Ethernet, Interlock |
|
Cables |
RS-232 cable, USB cable and |
RS-232 cable and IEC power cord | |
|
Safety & Warranty | |||
|
Interlock |
External Interlock & Interlocked beam shutters |
External Interlock & Interlocked beam shutters | |
|
Warranty |
3 years (improper use excluded) |
3 years (improper use excluded) | |
|
Plug-in cards | ||
|
RadiSense® |
the range of battery-free E-Field Sensors | |
|
RadiLink® |
the analogue fibre optic link to 3 GHz | |
|
RadiMate® |
the four channel AD/DA monitor | |
|
RadiPower® |
the range of power meters for EMC applications | |
|
RadiGen® |
the signal generator for EMC applications | |
|
RadiSwitch® |
to switch two, four or six 40 GHz / 700 W channels | |
